pump detail

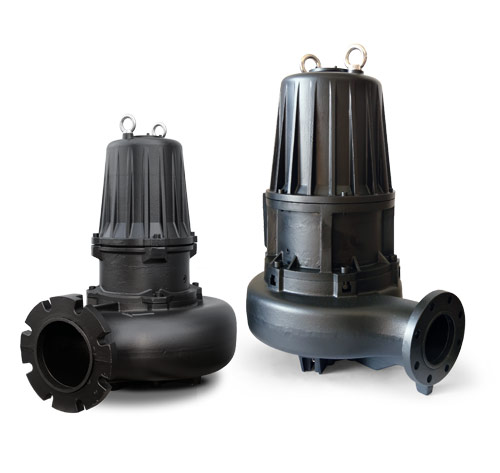

Electropumps with open channel impeller
A4 (until 60 kW)
The A4 poles Series is used to pump clear liquids and sewage. The wide range and high hydraulic efficiency renders this series particularly suited o water treatment plants, sewers, farming and industrial plants including in airports, underground
public transport, hospitals and hotels.
Technical data
| Impeller | Single channel / Two channel |
| Flanged output | DN150-200 |
| Performance | Hmax 58m, Qmax 760 m³/h |
| Power | 10 – 60 kW |
| Versions | Threephase |
| Main components | Cast iron GG25 |
| ATEX certification |  |
| IECEx certification |  |
Performance Overview
Data sheet
download
Documents and information
Details
The seal leak detector is certified according to the norm EN 60079-0, EN 60079-1 (through safety barrier) and fitted standard on all series (not applicable with IECEx).
This range of pump features close double channel impeller with excellent performance and free passage of solids up to 130 mm.
Pumps with explosion proof available on request.
 0477 | EPT 17 ATEX 2703 X |
| II 2G | Ex db IIB T4 Gb Ex h IIB T4 Gb 0°≤ Ta ≤40° |
The series is fitted with a cylindrical roller bearing (upper bearing) to absorb the thrust and vibration generated by the pump shaft.
