pump detail
electropumps with twin channel impeller

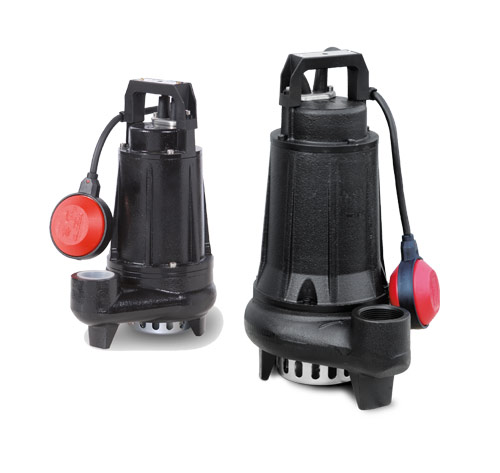

BIC
The BIC series is used to pump clear water or light sewage. High hydraulic performance renders this series particularly suited to pumping rainwater, surface water, groundwater, lakes and rivers.
Technical data
| Impeller | Twin channel impeller |
| Flanged output | G 1″1/4 – G1″1/2 – G”2 |
| Performance | Hmax 18m, Qmax 47 m³/h |
| Power | 0,28 – 2,2 kW |
| Versions | Monophase/Threephase |
| Main components | Cast iron GG25 |
| ATEX certification |  |
Performance Overview
Data sheet
download
Documents and information
Details
With double Mechanical Seal in oil chamber
Motor side: Carbon/Ceramic (CA/CE/Viton)
Impeller side: Silicon carbide (SIC/SIC/Viton)
Inspectional oil chamber
For the correct operating of the float switch on the three-phase version (only up to 1,5kW).
The BIC PRO and A 50/2/110 C.225-226 series with explosion proof available on request.
 0477 | EPT 17 ATEX 2701 X |
| II 2G | Ex db IIB T4 Gb Ex h IIB T4 Gb 0°≤ Ta ≤40° |
Twin channel impeller with strainer. Free passage up to 20×10 mm
