electropumps with Vortex impeller

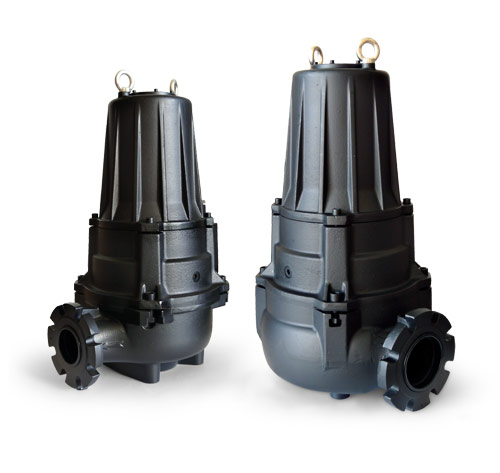

VTH
The VTH 2 poles Series is used for pumping sewage with suspended solids. High performance renders it useful in a variety of applications including water treatment plants, industrial plants, farming and sewage.
Technical data
| Impeller | Vortex |
| Flanged output | DN80-100 |
| Performance | Hmax 68m, Qmax 151 m³/h |
| Power | 12 – 40 kW |
| Versions | Threephase |
| Main components | Cast iron GG20 |
| ATEX certification |  |
| IECEx certification |  |

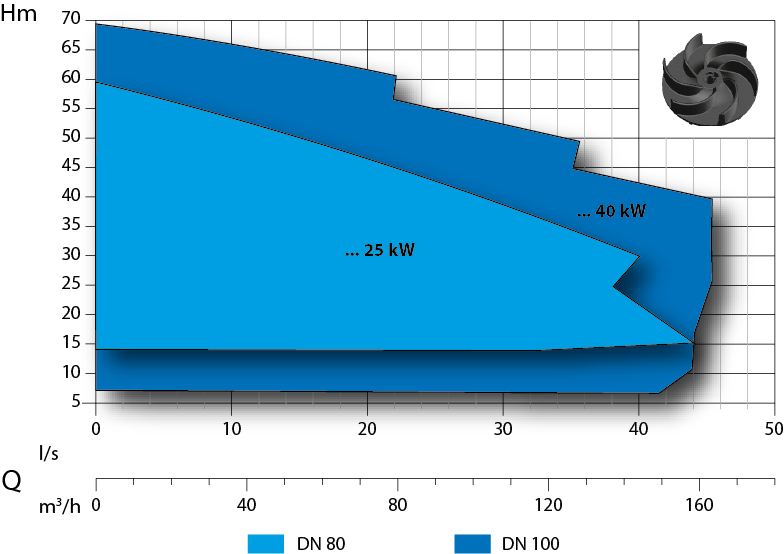

Performance Overview
Data sheet
Details
The seal leak detector is certified according to the norm EN 60079-0, EN 60079-1 (through safety barrier) and fitted standard on all series (not applicable with IECEx).

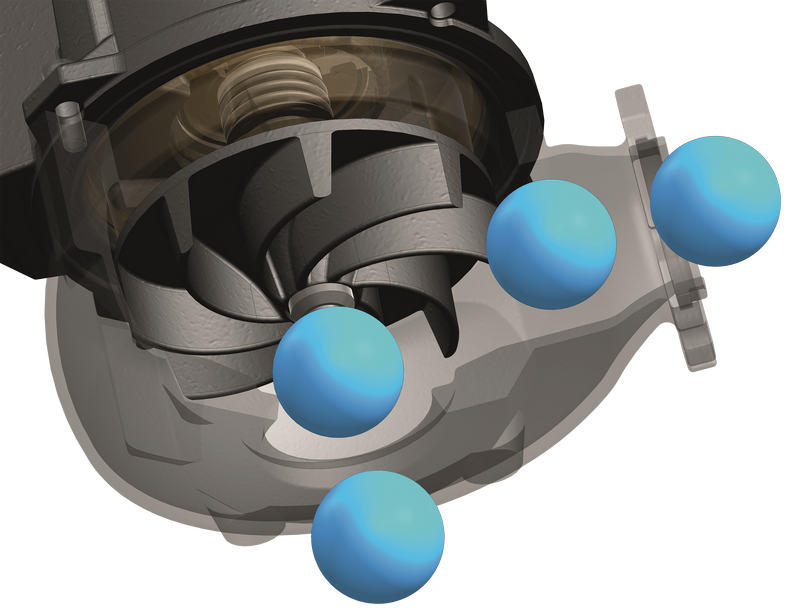

Impellers have been studied to grant excellent performances and ample solid handling.
These certificates grant for the safe use of the product in hazardous area in line with the stringent European and International standards ATEX/IECEx.
 0477 | EPT 17 ATEX 2703 X |
| II 2G | Ex db IIB T4 Gb Ex h IIB T4 Gb 0°≤ Ta ≤40° |
| EPT17 ATEX 2702 |
The series is fitted with a cylindrical roller bearing (upper bearing) to absorb the thrust and vibration generated by the pump shaft.
