pump detail
electropumps with twin channel impeller
APX
The APX Series is used to pump clear water or light sewage where high pressure is needed. This series is particularly suited to pumping water for fountains, waterparks, agricultural irrigation and farming.
Technical data
| Impeller | Twin channel impeller with strainer |
| Flanged output | DN32 G1″1/4 |
| Performance | Hmax 27m, Qmax 18 m³/h |
| Power | 0,9 – 1,4 kW |
| Versions | Monophase/Threephase |
| Main components | Cast Iron GG20 |
Performance Overview
Data sheet
download
Documents and information
Details

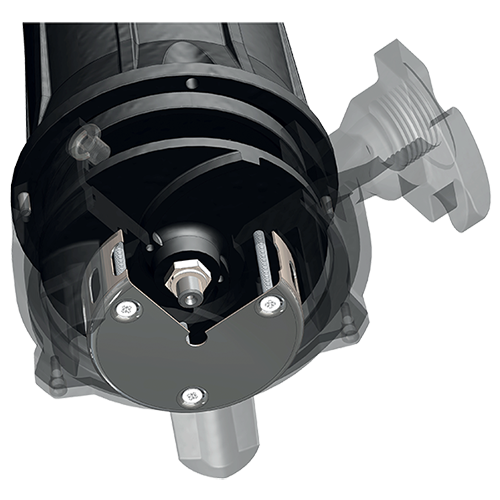

Twin channel impeller with strainer. Free passage up to 20×10 mm
For the correct operation of the float switch on the three-phase version.
Flanged output DN32 PN6 with G 1”1/4 female thread
